01 / Buyer problem & application
SEG Frames & Custom Profiles
An SEG frame holds the compatible graphic edge and supports a project-specific display configuration. Frame and profile requirements are reviewed against dimensions, structure, finish, mounting, graphic compatibility and intended supply scope; new tooling may be considered for qualified projects, but drawing, volume, MOQ, availability and lead time must be confirmed before an option is accepted.
02 / System overview
What an SEG Frame and Profile Review Must Define
The page supports a profile-review conversation. It does not pre-approve frame-only, LED-kit, pre-assembled or modular supply. For complete display context, review Custom SEG Light Box Systems; for drawing-led or tooling enquiries, use custom project review support.
Existing profile review
Start from the target section, interface, configuration and application; current availability must be confirmed.
Confirm per project
Frame configuration review
Clarify dimensions, corners, assembly state, sidedness and how the frame is intended to be handled.
Scope not assumed
New tooling enquiry
Custom profile systems may be considered subject to volume, drawing and tooling review.
Qualified projects

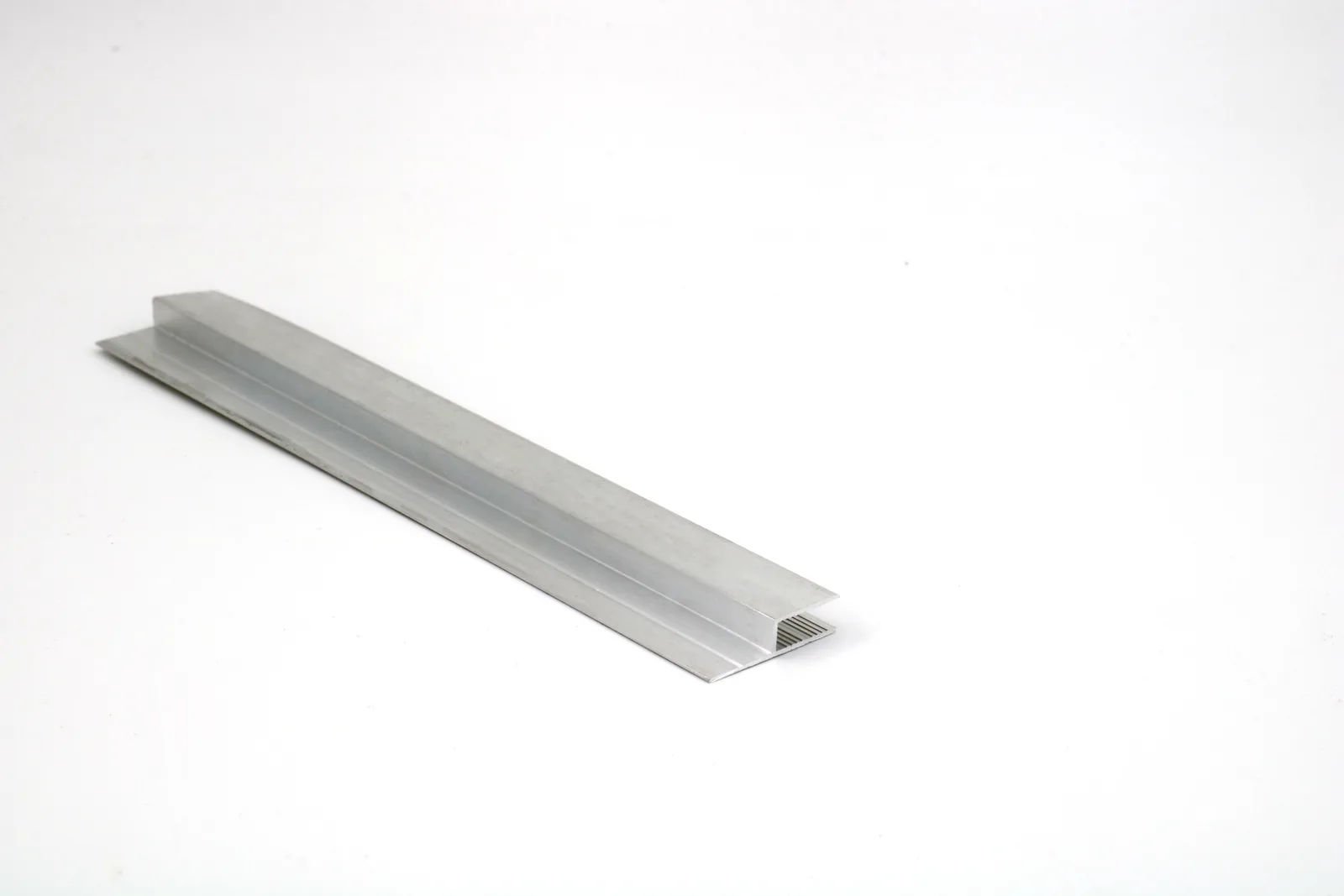

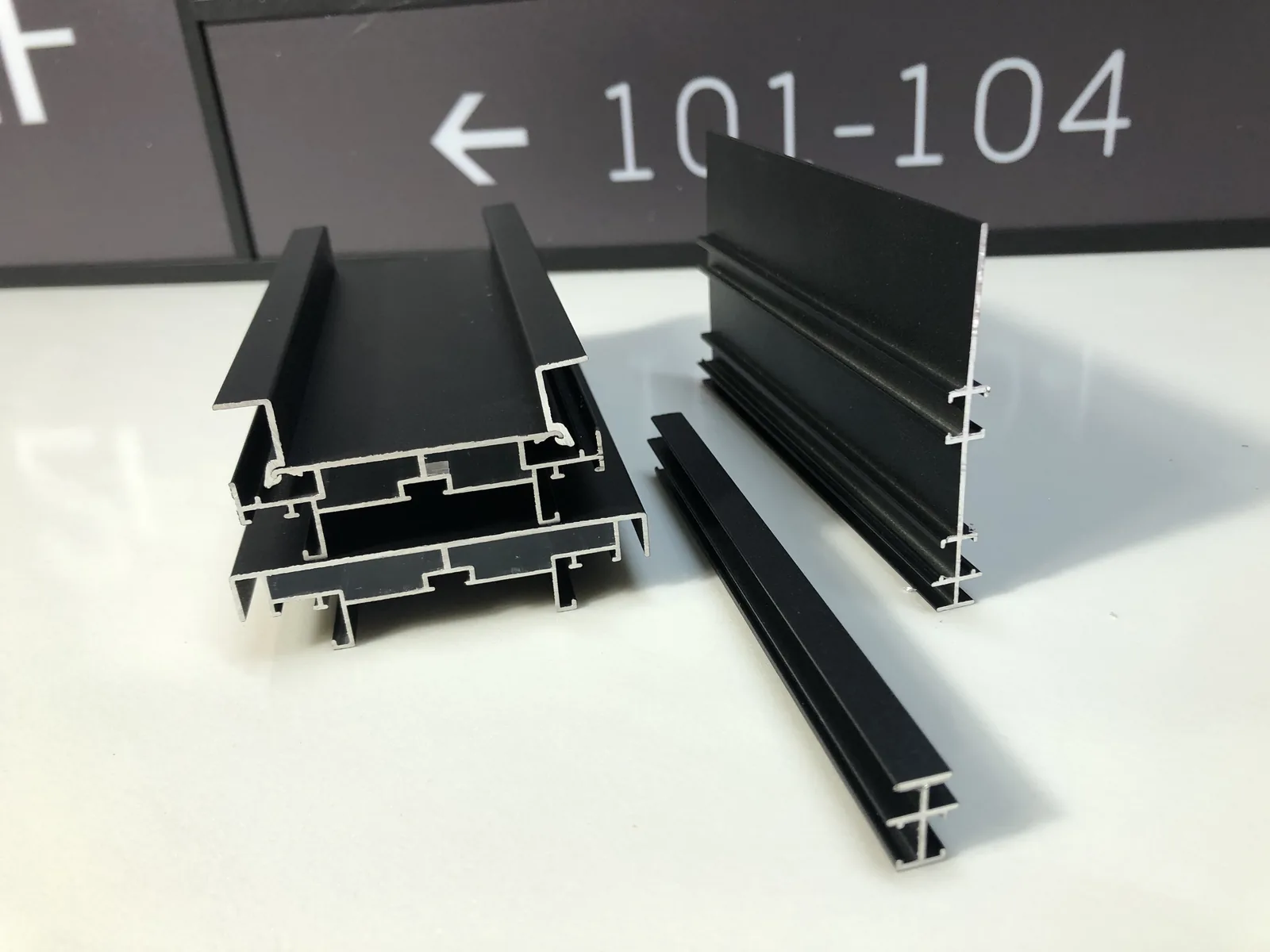

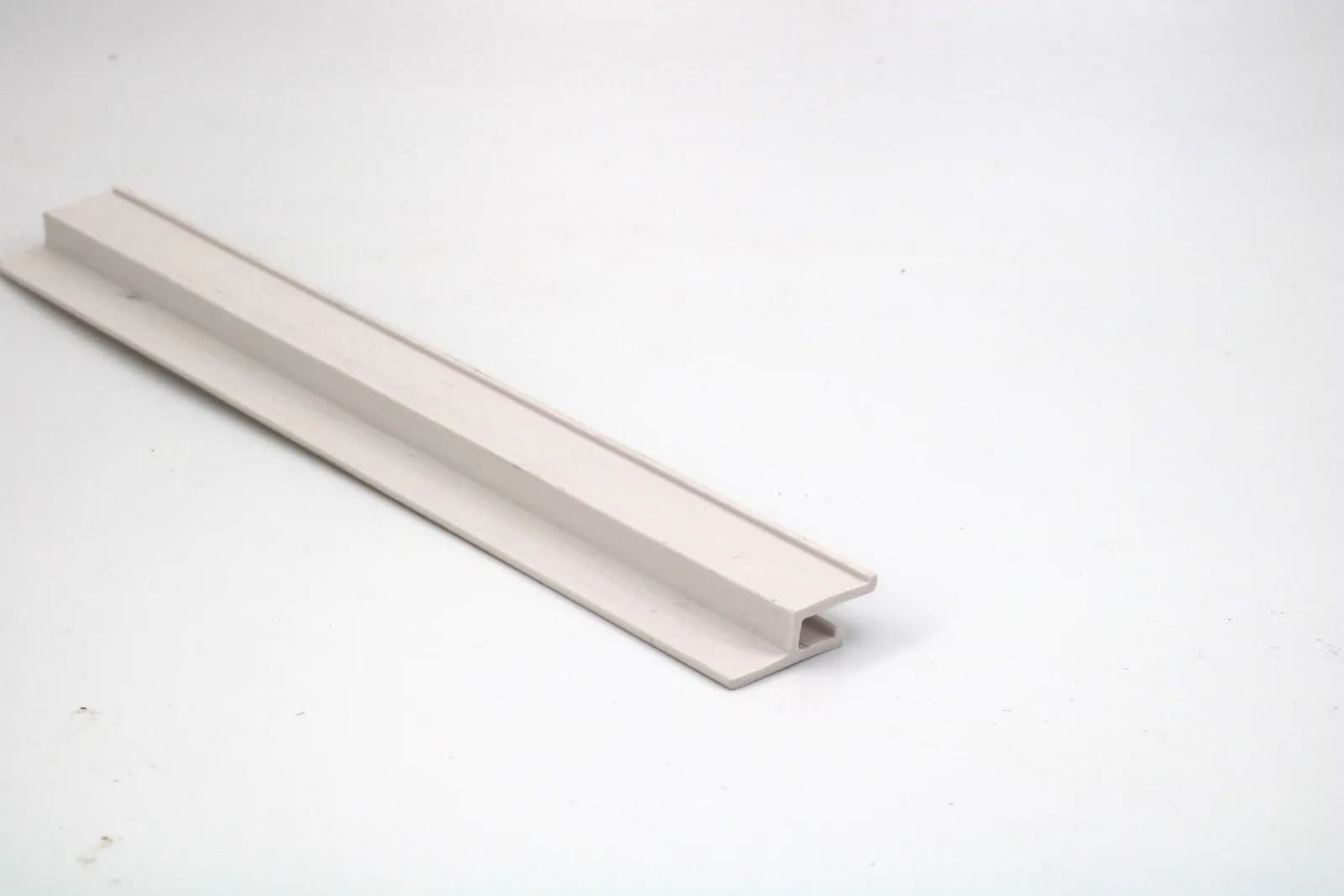

Profile details and an assembly-function demonstration
These images show physical sections and an assembly-function sequence. Exact dimensions, section drawings and compatibility are confirmed for the selected project configuration.
Start with a family, then confirm the exact section
The matrix groups the most useful B2B starting points from the current product master. It is not a stock or availability list.
Current depth matrix; exact section confirmed by drawing
Drawing required before specification

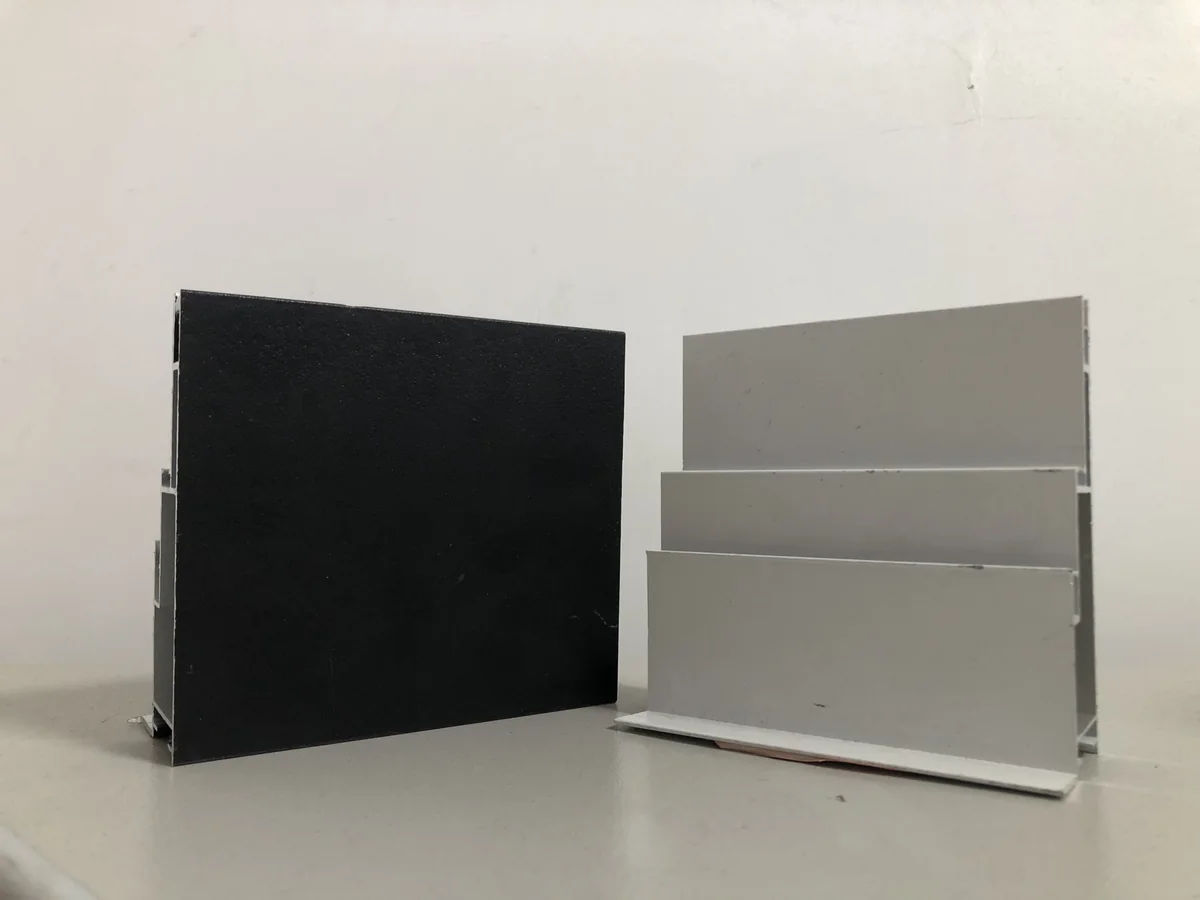

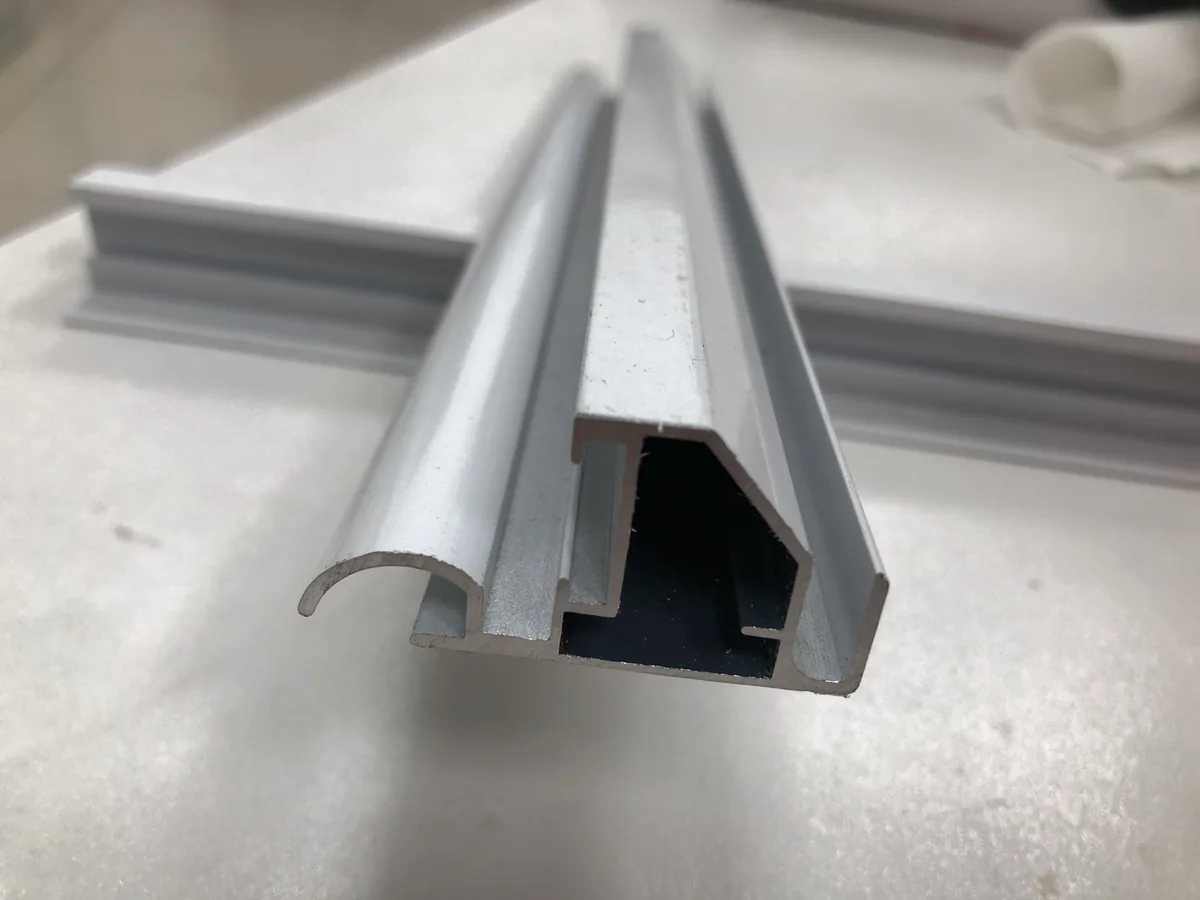

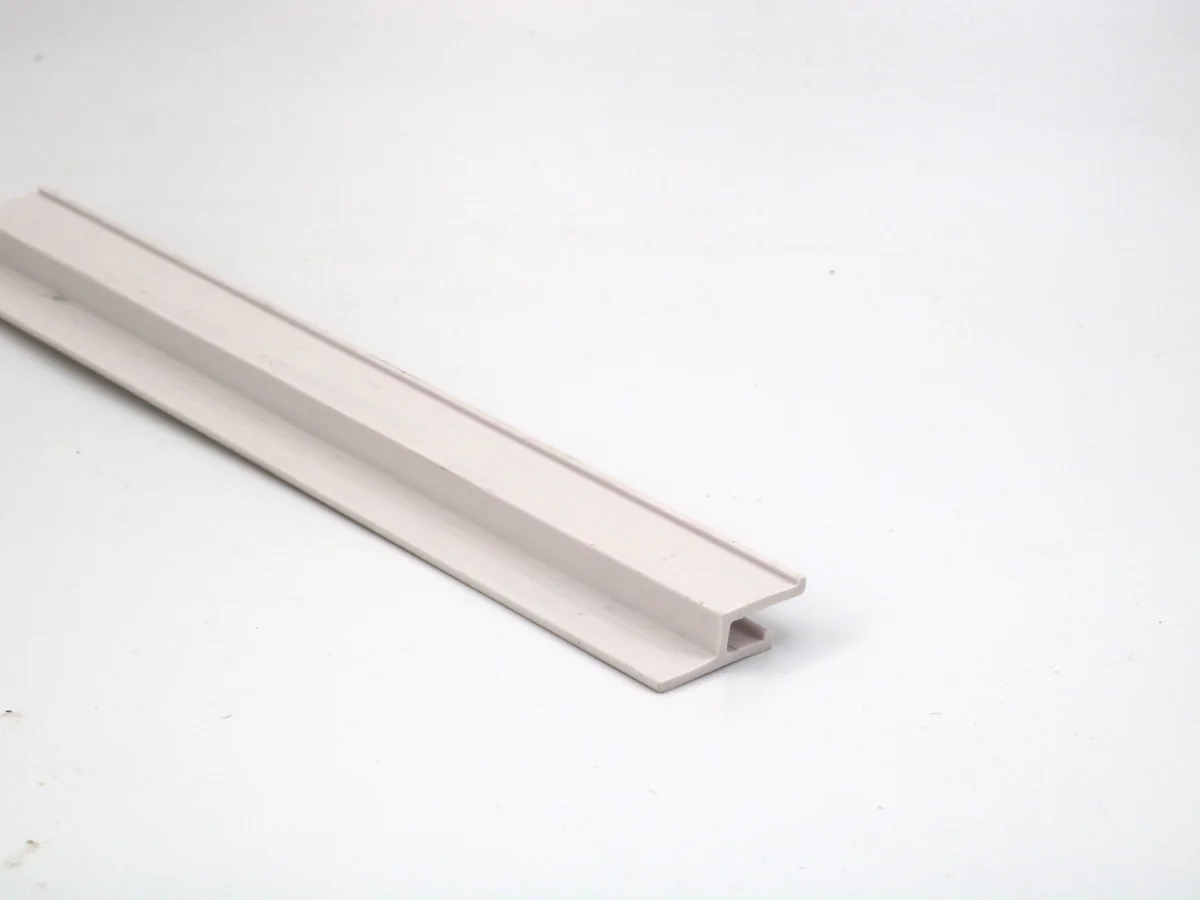

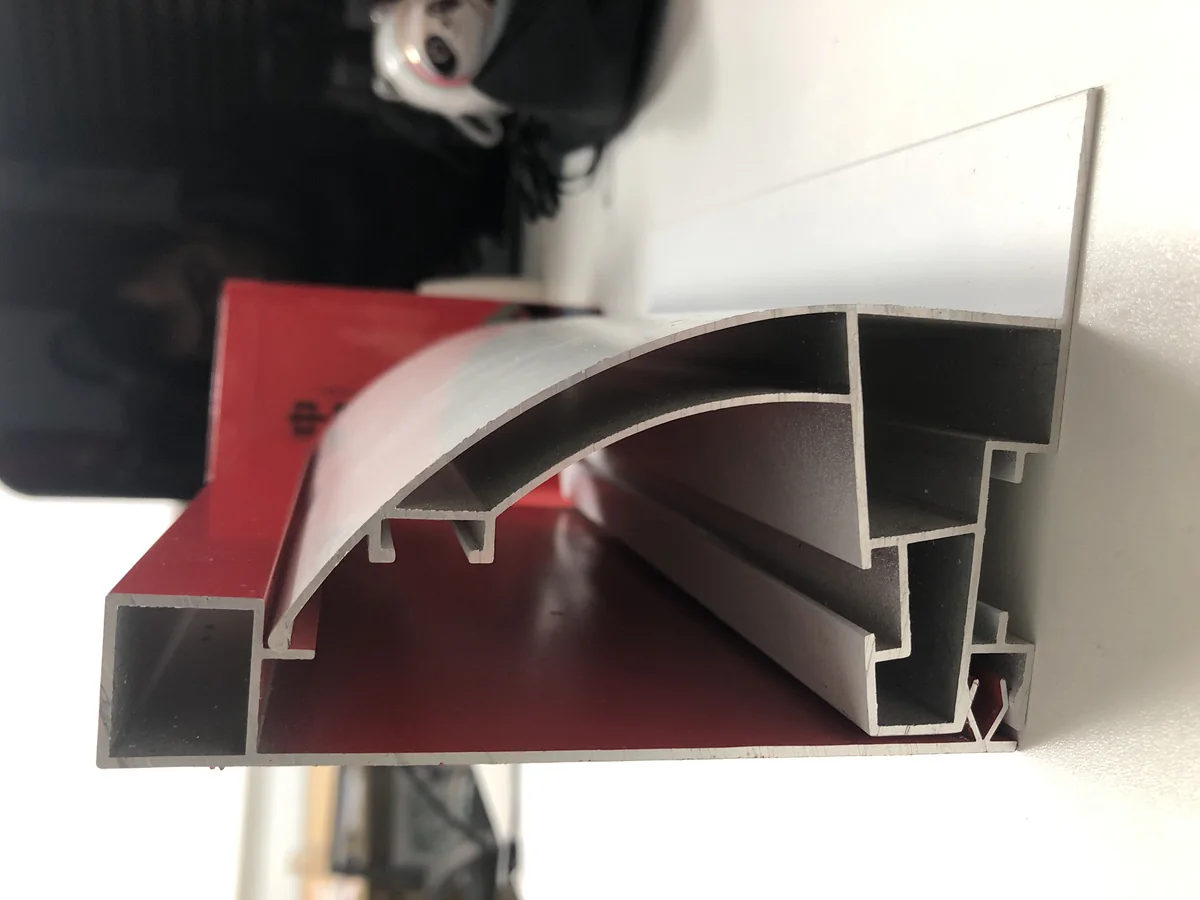

Physical samples available; section drawing required
Project/sample mapping required

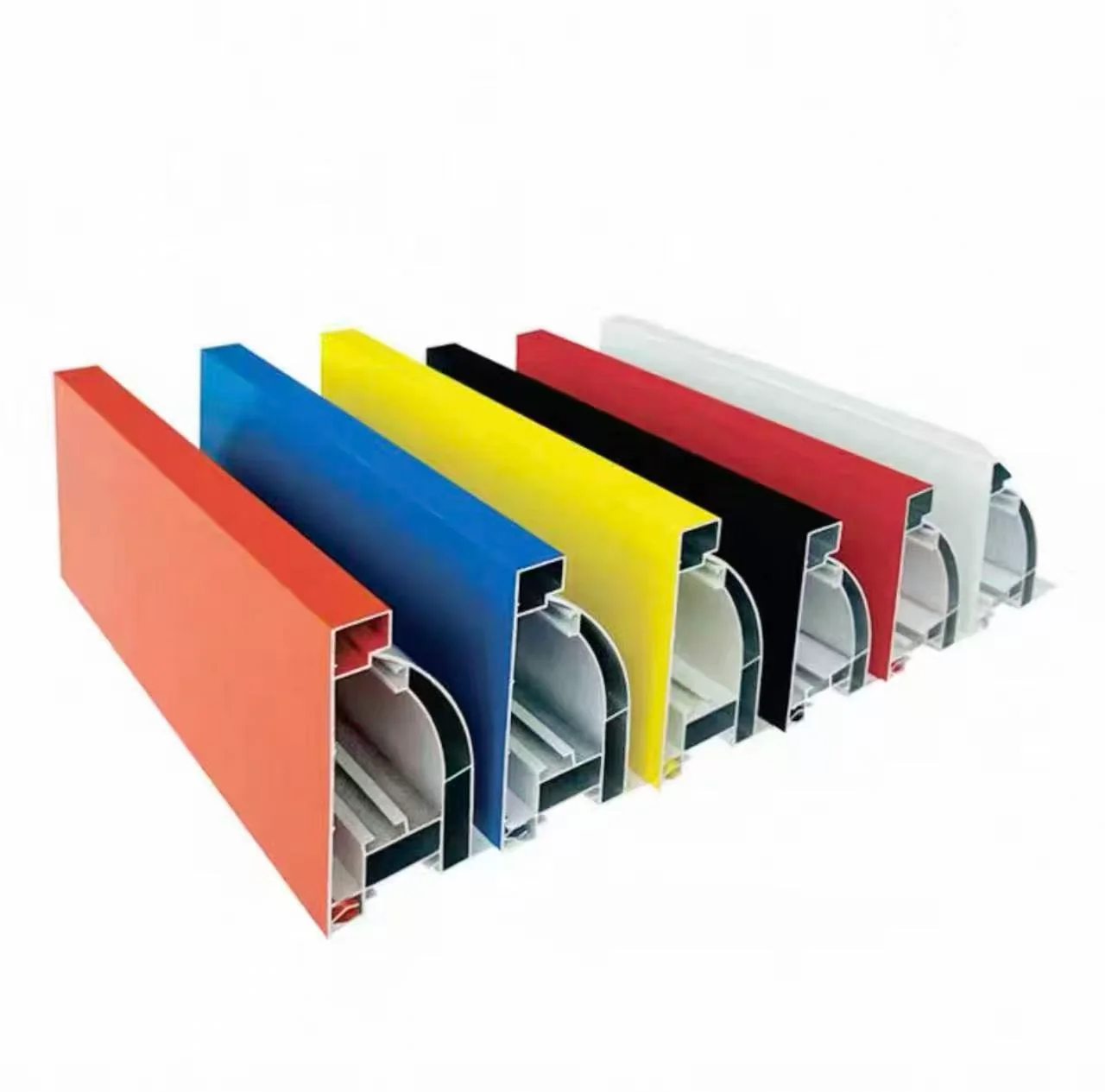

Confirm finish and colour through a physical reference
Black and white appear in specific source variants. Additional project-specific colours are reviewed from a colour card, supplied physical reference or approved pre-production sample; finish, MOQ and timing are confirmed for the actual requirement.
03 / Configuration options
Six questions shape the frame brief
Every item is an input for review, not a published stock or performance specification.
Profile purpose
Complete display perimeter, replacement requirement, integration detail or new section enquiry.
Target section
Share an authorized drawing, sketch or interface requirement where available.
Frame geometry
Width, height, shape, sidedness and intended corner/connection approach.
Finish reference
Desired finish and physical color sample if a custom finish is requested.
Supply state
State what you expect to receive; the available scope must be confirmed before quotation.
Volume & timing
Estimated requirement, tooling expectation and target date; MOQ and lead time remain project-specific.
04 / Who it is for
For buyers who need a frame decision, not a generic listing
Sign companies
Custom frame enquiries tied to a defined display project.
Trade printers
Frame and graphic-interface requirements that need coordinated review.
Distributors
Profile requirements that need a controlled scope and configuration.
Fabricators
Existing-section or new-tooling enquiries supported by drawings.
05 / Technical decision variables
The profile review register
Compatibility is confirmed only for the reviewed configuration.
No historical sample report is generalized to a current profile or batch.
No universal tolerance is published; inspection requirements must be agreed for the project.
Finish, color, MOQ and approval remain project-specific.
Pre-assembled or modular supply is not implied by this Draft.
Packaging and shipping data require confirmation for the actual scope.
06 / Custom options
Bounded custom paths
Custom dimensions
Frame dimensions remain subject to drawing review, MOQ and project confirmation.
Custom finish
Finish and color can be reviewed against a physical sample, MOQ and approval.
Custom structure
Frame structures can be reviewed against customer drawings.
New profile tooling
May be considered for qualified volume; drawing, tooling, MOQ and lead time are reviewed per project.
07 / Project review process
A controlled route to profile selection
Describe the use and target interface
Explain where the profile sits in the system and what must connect to it.
Provide the drawing or section requirement
Authorized drawings, dimensions and critical interfaces reduce ambiguity.
Review availability or tooling feasibility
Existing configuration and new-tooling paths are considered separately.
Confirm scope, MOQ and lead time
Commercial and technical conditions are tied to the actual reviewed requirement.
08 / What the buyer should send
The minimum useful profile brief
What the frame/profile must do in the proposed display.
Only material you are authorized to share.
Identify the dimensions that drive fit or acceptance.
State whether a physical color sample is available.
Needed to review tooling and project-specific MOQ.
The date remains a request, not a lead-time promise.
09 / FAQ
Profile enquiry questions
Are all profile configurations stocked?
Current availability and the applicable configuration are confirmed after review.
Can a new profile section be considered?
New tooling may be considered for qualified projects, subject to drawing, volume, tooling, MOQ and lead-time review.
Can you confirm cut-to-size or pre-assembled supply?
Not from this page. State the expected supplied condition in the brief; the available supply scope must be confirmed for the reviewed project.
Are custom colors available?
Custom color and finish requirements can be reviewed from a physical color sample, subject to finish, MOQ and approval. Exact colour reference and finish performance require project-specific confirmation.
How is compatibility with fabric or lighting confirmed?
Compatibility is reviewed for the actual profile, graphic interface and intended component scope. This Draft publishes no universal compatibility matrix.
10 / RFQ CTA
Prepare an SEG Frame or Profile Brief
A useful review begins with the application, target interface, dimensions, finish and estimated volume.
